What is 7.4mm x 0.6 mm Made Energy storage Dc connector
In recent years, new energy storage systems have become an increasingly essential component in the renewable energy industry. The role of energy storage systems is to ensure that the produced energy can be stored, transferred and used when needed. Energy storage connectors are a critical aspect of this process as they are responsible for providing a safe, efficient and reliable connection between the storage system and the load.
New energy storage connectors are specially designed, highly efficient products that make it easier to connect energy storage systems to other equipment in the power grid. Individuals working in the renewable energy industry understand the importance of using high-quality connectors as these components can impact the overall performance of energy storage systems.
|
Place of Origin |
Guangdong, China |
|
Model Number |
74P06C3L237 |
|
Application |
Power |
|
Inner diamter |
0.6mm |
|
Warranty |
12 months |
|
Rated input current |
0.5 - 5A |
|
Voltage Withstand |
50/60Hz for 1 minute 500 Vac |
|
Rated input voltage |
12- 24V |
|
Brand Name |
WS |
|
Type |
Dc Power Connector |
|
Gender |
Male |
|
Outer diameter |
7.4mm |
|
Life |
5000 times |
|
Certificate |
ISO9001:2015 |
|
Insulation Resistance |
500 Vdc 100 MΩ |
|
Contact resistance |
30mΩ max |
New Energy Storage Connectors
One of the most significant benefits of new energy storage connectors is their ability to facilitate higher voltage and current flows. Inefficient connectors can lead to voltage drop, power loss, and other potential safety risks. New energy storage connectors provide increased connectivity and help drive efficient energy storage systems.
Another advantage of new energy storage connectors is their efficiency during high-speed cycling. Advanced connection technologies have vastly improved the lifespan of connectors while ensuring that they can withstand the extreme environments that are often found in energy storage applications.
The latest energy storage connectors also feature enhanced safety features, including anti-vibration designs and tamper-resistant housings. These features help to prevent system failure and ensure that components remain securely in place.
New energy storage connectors provide an essential link in energy storage systems. High efficiency, voltage and current flow capabilities, enhanced safety features and longevity make them an increasingly critical component in the renewable energy industry. With experienced manufacturers producing these products, it’s easier than ever for companies to access top-quality energy storage connectors.

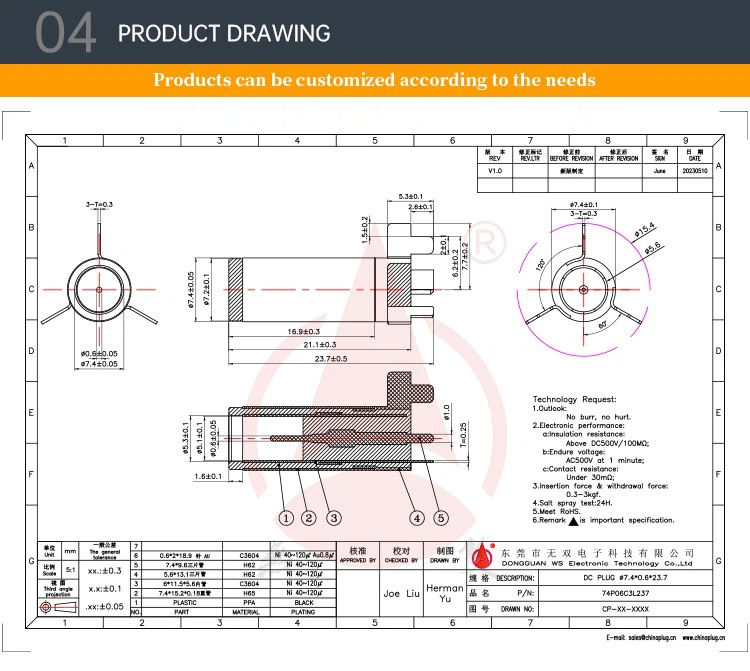

Product Drawings
