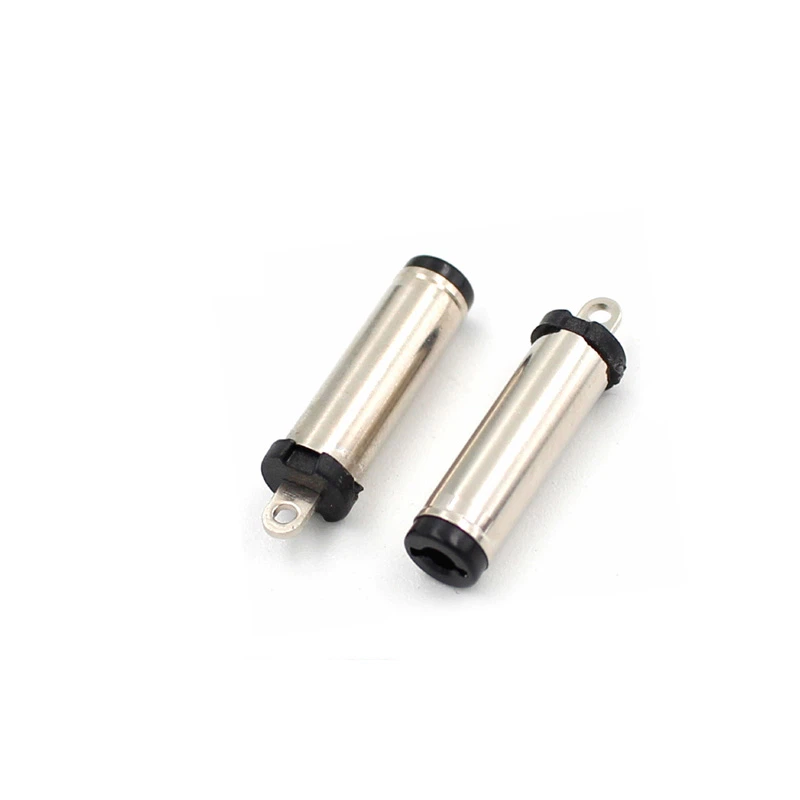

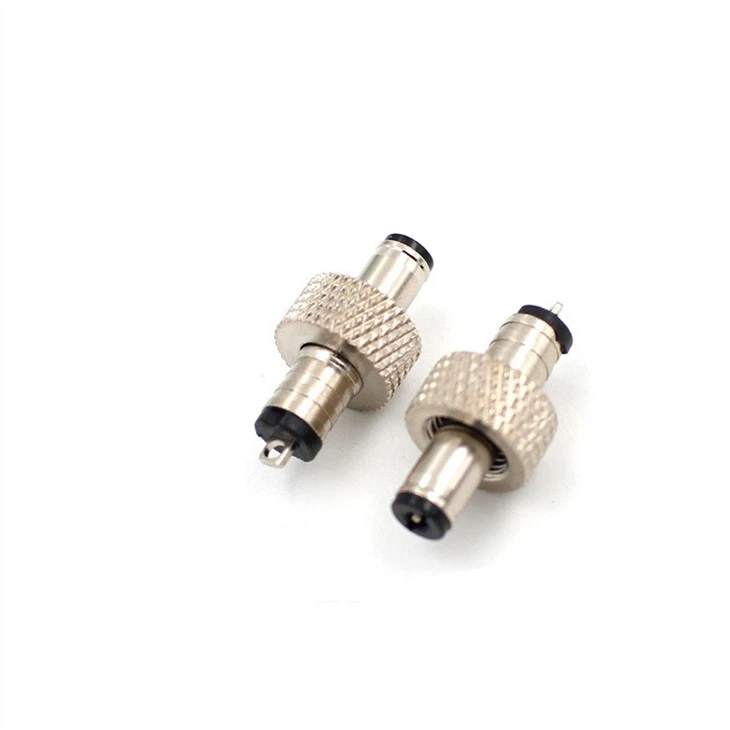

Place of Origin | Guangdong, China |
Model Number | 5525C225 |
Application | Power |
Pins | 2P |
Inner diameter | 2.5mm |
Contact resistance | ≤30mΩ MAX |
Warranty | 12 months |
Promise | All defective product can be replaced freely |
Culture | Quality is the first |
Brand Name | WS |
Type | mobile charger connector |
Gender | Male |
Outside diameter | 5.5mm |
Length | 22.5mm |
Working temperature | -20°C--+85°C |
Life | 5000 times |
Certificate | ISO9001, CE, ROHS compliant |
Dc Plug operation
1. Before plugging and unplugging, confirm the code of the plug and socket to be plugged, the "shape" of the interface, "positioning keyway", "positioning color code", "lock" interface and check the "tightening nail and card slot" and "positioning screw and screw Hole" corresponds to, and accurate positioning.
2. During the process of pushing or screwing in the power connector, the mating surfaces of the plug and socket should be aligned parallel to each other. After the cable or wire has been straightened, the locking sleeve is gently pushed in or slowly threaded along the axis into place and locked. If you find that the two mating surfaces are skewed, the positioning is inaccurate, the hand feels tighter than the normal force or there is an abnormal feeling such as blocking, stop the operation, pull it out along the axial direction, and check the status. After troubleshooting, reinsert the catch. It is allowed to use special auxiliary tools for plugging and unplugging.
3. When the tail cap of the plug or socket is tightened, the cables or wires coming out of the tail cap cannot be rotated.
