Product Details：

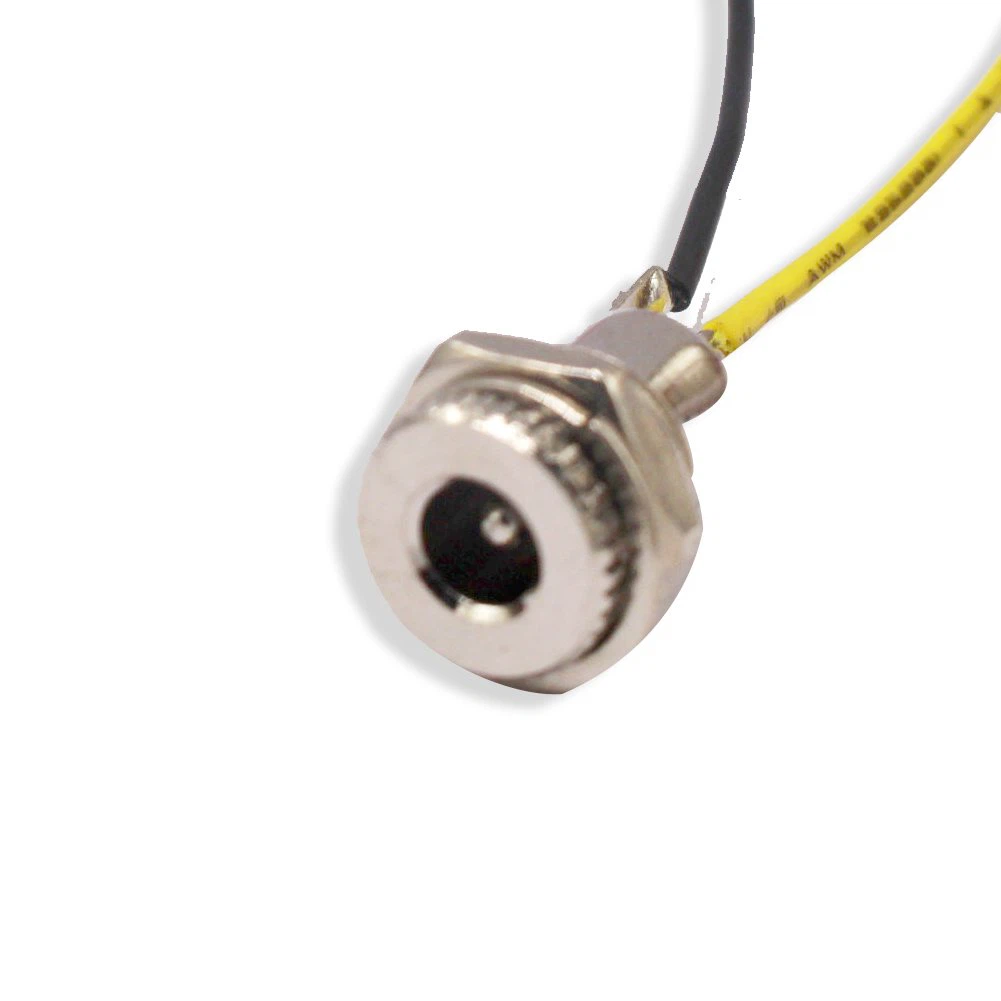

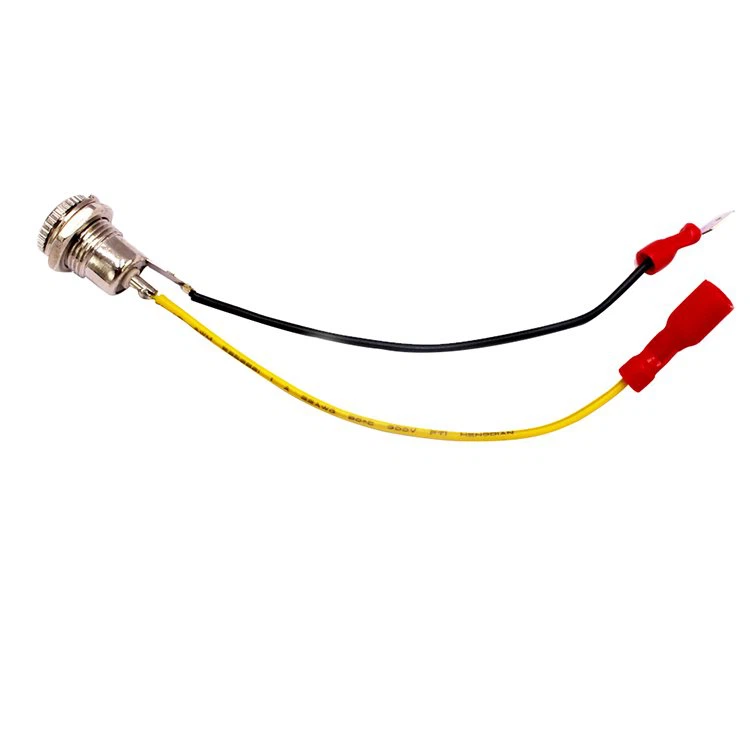

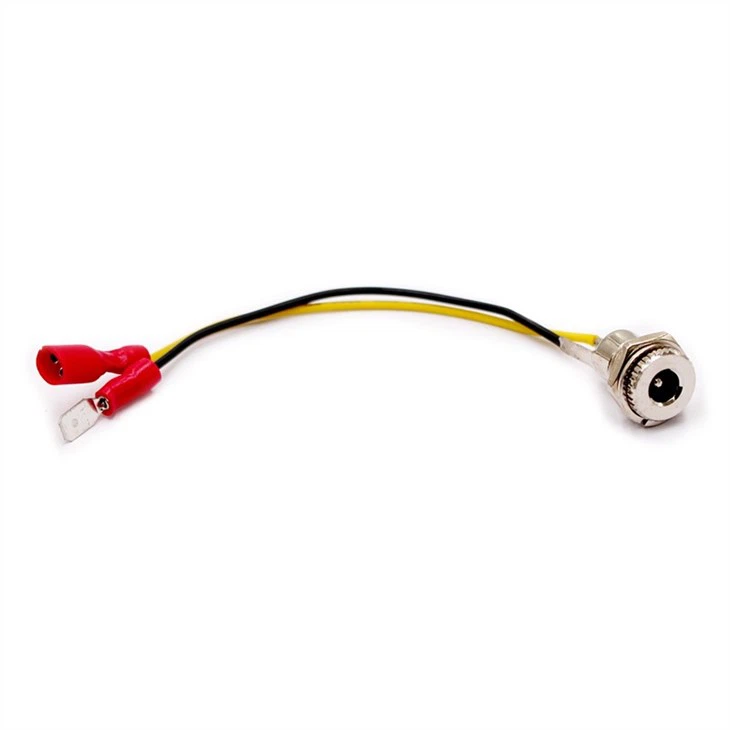

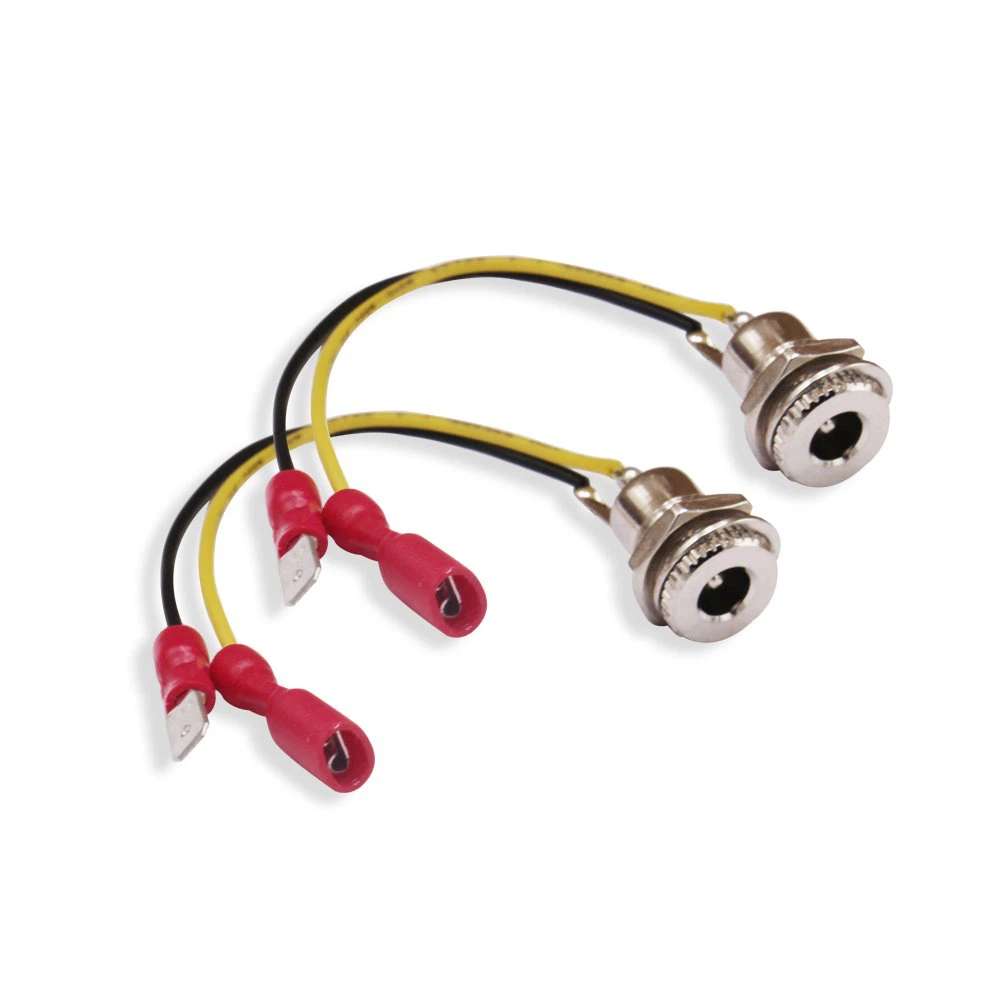

(1) Connector : 5.5 MM x 2.1 MM Female 5V Socket, Threaded 5.5 MM x 2.1 MM Female 5V Socket, 5V high current metal dc female receptacle plug;
(2) Connector Materail : DC Power Jack 5.5mm x 2.1mm, Durable High Quality Metal Copper Material 5.5 2.1 jack, Insulation flame retardant, Fast conduction.
(3) Use : 2.1MM Panel Mount Power Jack, Easy to Install DC Barrel Power Plug Using Positive and negative soldering, More convenient to use; And the longer side is negative, the shorter side is postive.
(4): Application : Multipurpose 5.5MM Wall Mount DC barrel 5v socket for 2.1mm power supplies; for connecting power sources to your wireless Stereos; for low voltage solar controller board; for laptop computers, small televisions and other electronic.
Questions and Answers:
1.
Qestion: Is the nut that goes on the case 11mm?
The hex size of the nut (over the flats) is 14mm.
2.
Question:
Can it support for 12v 5amps when working?
Answer : Yes. It can work at DC 12v to DC 30V.
3.
Question:
Is there the MOQ for purchasing ?
Answer : Yes. Normally there is MOQ 500 units, but we also support small trial order in the beginning, so plesae do not worrry.
4.
Question:
What is lead time for the order ?
Answer : Normally the lead time for 500-1000 units is 7 days; 5000 units is 10-12 days; 10000 units is around 15 days.
Technical Parameters:
Connector Specification | 5.5mmx 2.1mm |
Working Volatge | DC 5V - DC30V |
Working Current | 5A - 10A |
| Life | 10000 times |
Operation Temperature | -30°C - + 70°C |
Cable Specification | UL2464 18AWG |
Cable Material | PVC |
Cable Length | 30cm |
